Build the complete geometry of a stair

Source: R/build_geometry.R
build_geometry.Rd

Computes the geometry of each riser by determining its horizontal position (the cumulative width of the preceding goings) together with its bottom and top elevations.

Usage

build_geometry(n_risers, step_height, goings)

Arguments

n_risers

Number of risers.

step_height

Uniform riser height.

goings

Numeric vector of going lengths, with length n_risers - 1 (standard stair) or n_risers (including a landing going).

Value

Return a data.frame with one row per riser and the following columns: step, x_riser, y_bottom, y_top, going, x_going_end, and going_type.

Details

Two going configurations are supported:

  • A vector of length n_risers - 1, corresponding to a conventional stair where the last riser reaches the landing directly, with no going beyond it.

  • A vector of length n_risers, corresponding to a stair with an additional landing going after the last riser, at the same elevation as the destination landing.

The returned geometry is intended to be plotted directly using segments() in base R:

  • Riser i (vertical): from (x_riser, y_bottom) to (x_riser, y_top).

  • Going i (horizontal), when present: from (x_riser, y_top) to (x_going_end, y_top).

Examples

geometry <- build_geometry(n_risers = 5, step_height = 17.33, goings = rep(28.33, 4) )
geometry
#>   step x_riser y_bottom y_top  rise going x_going_end has_tread
#> 1    1    0.00     0.00 17.33 17.33 28.33       28.33      TRUE
#> 2    2   28.33    17.33 34.66 17.33 28.33       56.66      TRUE
#> 3    3   56.66    34.66 51.99 17.33 28.33       84.99      TRUE
#> 4    4   84.99    51.99 69.32 17.33 28.33      113.32      TRUE
#> 5    5  113.32    69.32 86.65 17.33    NA          NA     FALSE

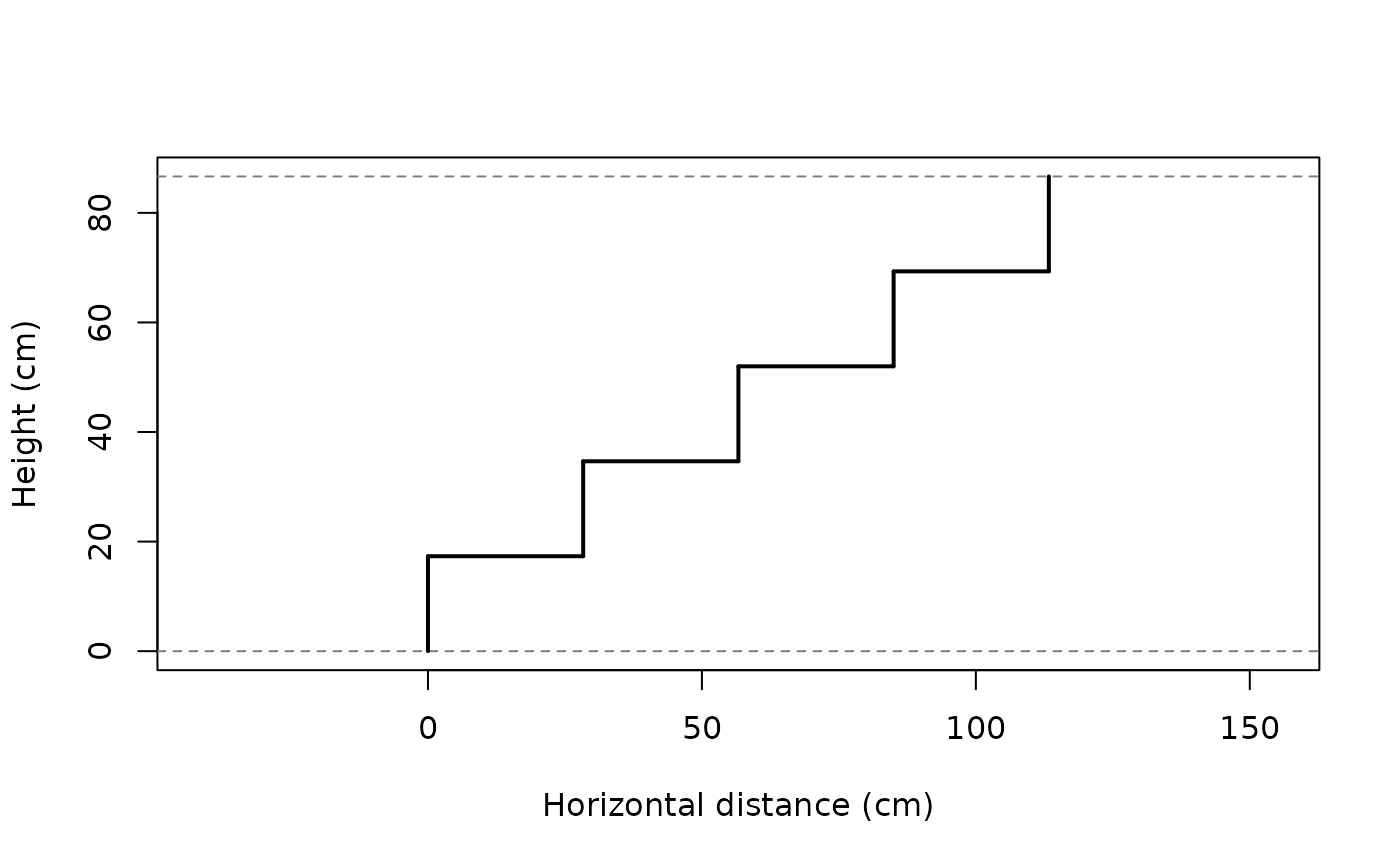

plot(geometry)
