Build the complete table of stair solutions (embedded geometry)

Source: R/build_solutions_table.R
build_solutions_table.Rd

Computes one summary row for each valid number of steps and each going scenario generated by generate_going_scenarios. Each row includes the complete stair geometry, generated with build_geometry, as a list-column named geometry.

Usage

build_solutions_table(candidates, max_horizontal_run, blondel_target = 63)

Arguments

candidates

A data.frame returned by optimal_nrisers.

max_horizontal_run

Maximum available horizontal run (cm).

blondel_target

Target value for Blondel's formula 2 * rise + going (cm). Default is 63.

Value

Return a data.frame (with additional class stair_solutions) containing one row per combination of number of steps and going scenario. The returned data frame includes the following columns:

  • n_risers: Number of steps to climb.

  • step_rise: Step height (rise).

  • rise_target_deviation: Deviation from the target step height.

  • going: Standard going.

  • scenario: Name of the going scenario.

  • horizontal_run: Total horizontal run.

  • blondel: Value of Blondel's formula (\(2h + g\)).

  • blondel_target_deviation: Deviation from the Blondel target.

  • has_landing: Whether the solution includes a landing.

  • horizontal_run_exceeded: Whether the available horizontal run is exceeded.

  • landing_impossible: Whether a landing is required but impossible.

  • is_valid: Whether the solution satisfies all design rules.

  • geometry: A list-column containing the complete stair geometry as a data.frame.

Details

The geometry associated with a solution can be accessed directly with solution$geometry[[1]].

Examples

candidates <- optimal_nrisers(160)
tbl <- build_solutions_table(candidates, max_horizontal_run = 1000)
head(tbl)
#>
#>   6 valid solution(s)
#>   n_risers step_rise rise_target_deviation    going           scenario
#> 1       10  16.00000              0.000000 31.00000 no_landing_blondel
#> 2       10  16.00000              0.000000 31.00000 no_landing_uniform
#> 3       10  16.00000              0.000000 31.00000   landing_standard
#> 4       10  16.00000              0.000000 31.00000        landing_max
#> 5       10  16.00000              0.000000 31.00000    landing_uniform
#> 6        9  17.77778              1.777778 27.44444 no_landing_blondel
#>   horizontal_run  blondel blondel_target_deviation has_landing
#> 1       279.0000  63.0000                  0.00000       FALSE
#> 2      1000.0000 143.1111                 80.11111       FALSE
#> 3       310.0000  63.0000                  0.00000        TRUE
#> 4      1000.0000  63.0000                  0.00000        TRUE
#> 5      1000.0000 132.0000                 69.00000        TRUE
#> 6       219.5556  63.0000                  0.00000       FALSE
#>   horizontal_run_exceeded landing_impossible is_valid
#> 1                   FALSE              FALSE     TRUE
#> 2                   FALSE              FALSE     TRUE
#> 3                   FALSE              FALSE     TRUE
#> 4                   FALSE              FALSE     TRUE
#> 5                   FALSE              FALSE     TRUE
#> 6                   FALSE              FALSE     TRUE
#> ('geometry' list-col is hidden - access via $geometry[[i]])

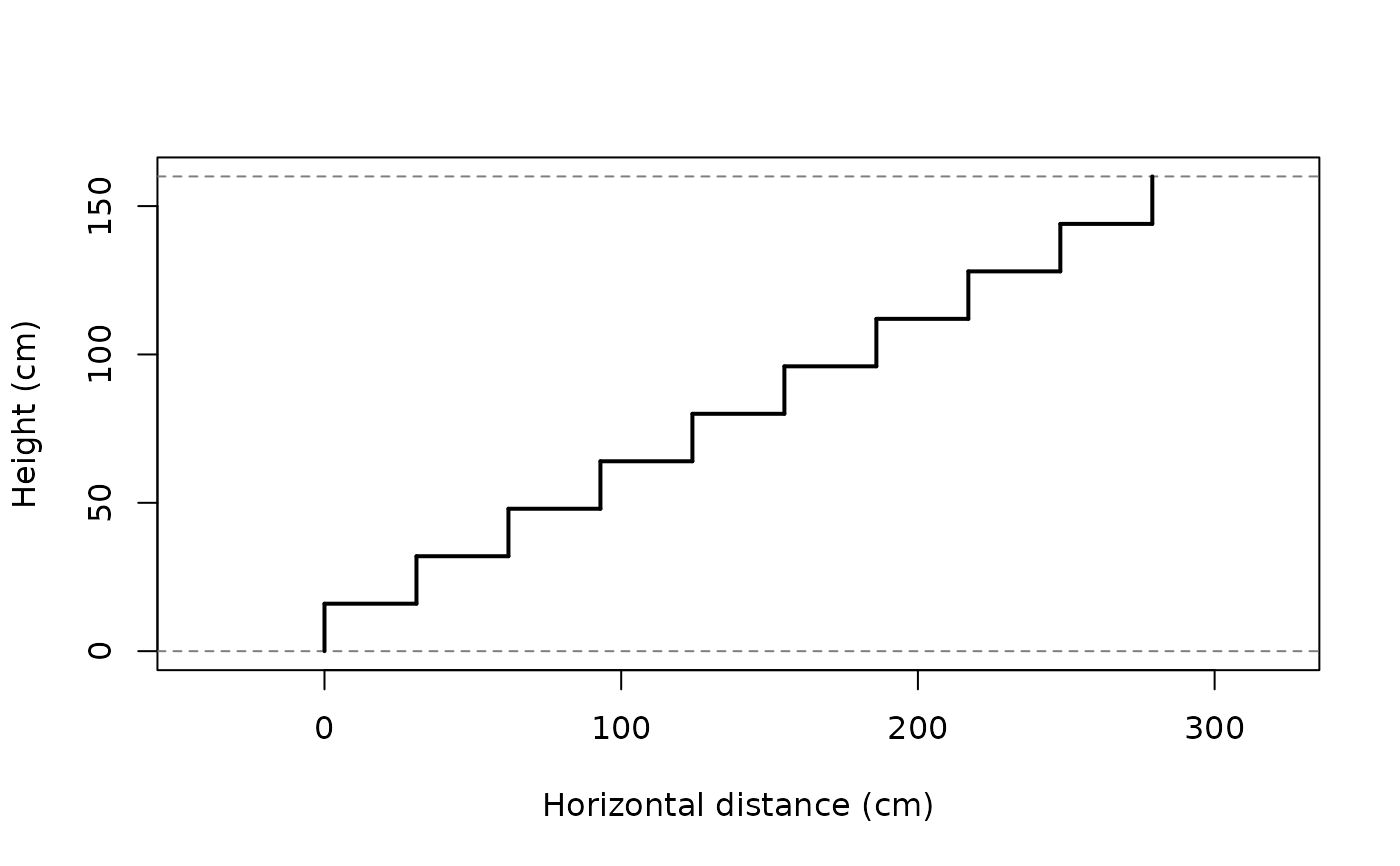

plot(tbl$geometry[[1]])
