Plot a stair profile — plot_stair • stairtools

Draws the profile of a staircase from a geometry data frame produced by build_geometry.

Usage

plot_stair(
  geometry,
  col_step = "black",
  col_floor = "gray50",
  show_dimensions = FALSE,
  cex_dimensions = 0.8,
  ...
)

# S3 method for class 'stair_geometry'
plot(x, ...)

Arguments

geometry: A data frame of class stair_geometry returned by build_geometry.
col_step: Colour used to draw step segments. Default is "black".
col_floor: Colour used for finished floor reference lines. Default is "gray50".
show_dimensions: Logical. If TRUE, cumulative horizontal and vertical dimensions are displayed. Default is FALSE.
cex_dimensions: Character expansion factor for dimension labels. Default is 0.6.
...: Additional graphical parameters passed to plot.
x: A stair_geometry object.

Details

Each step is represented by a vertical rise and a horizontal going. The lower and upper finished floor levels are displayed as dashed reference lines.

Objects returned by build_geometry inherit from the stair_geometry class, allowing direct use of plot().

Examples

geometry <- build_geometry(5, 17.33, rep(28.33, 4))

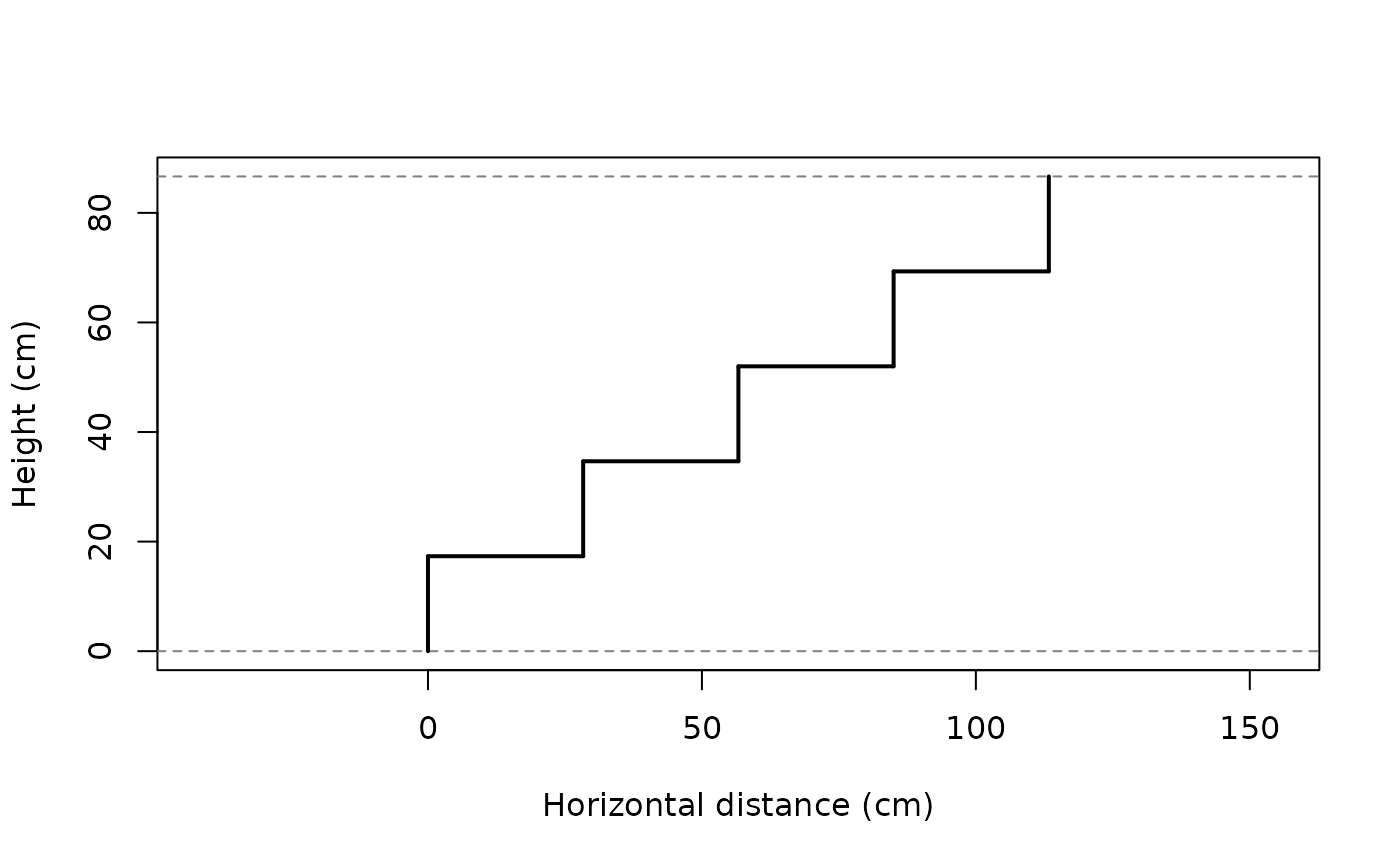

plot_stair(geometry)


plot(geometry)

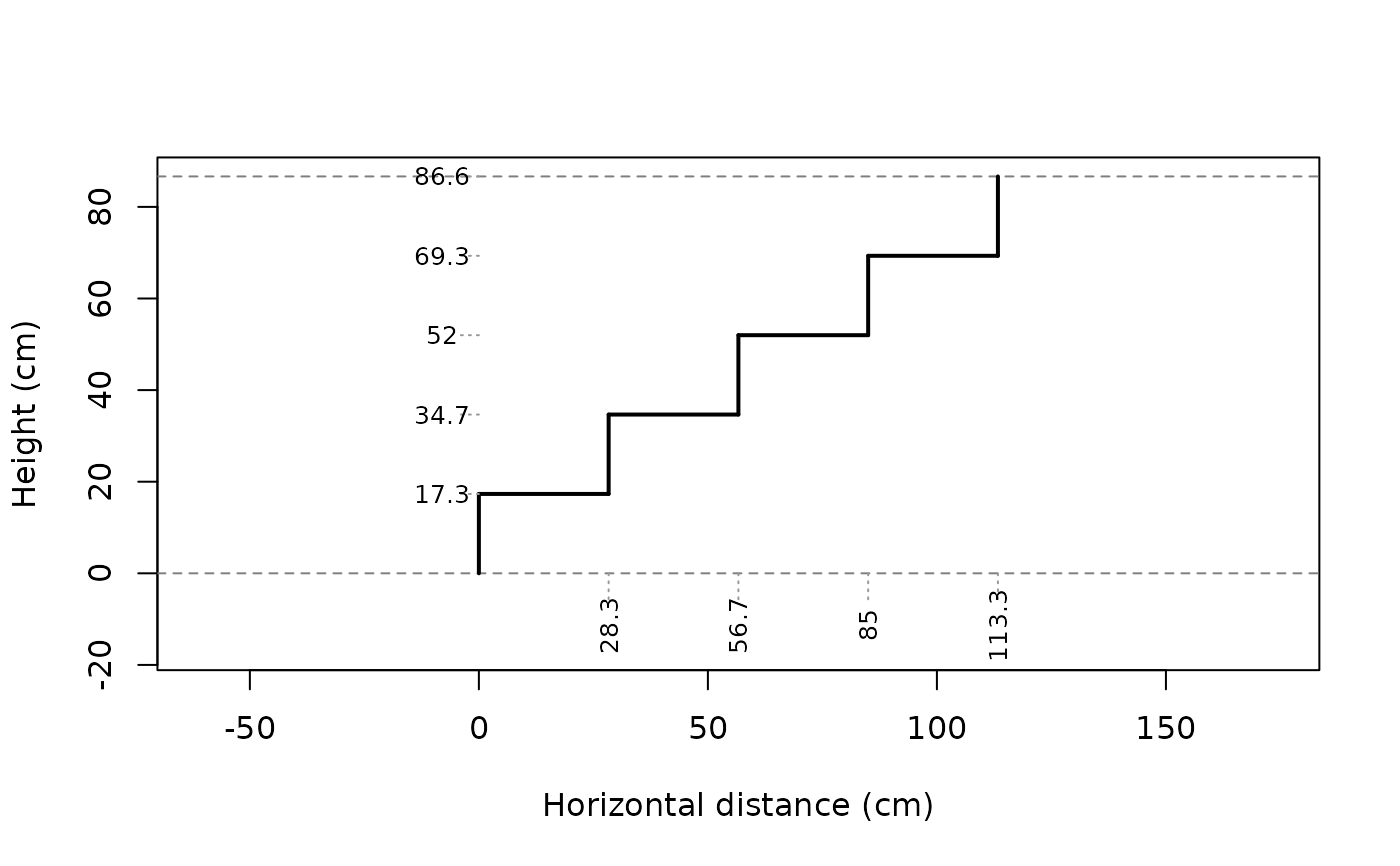

plot_stair(geometry, show_dimensions = TRUE)
